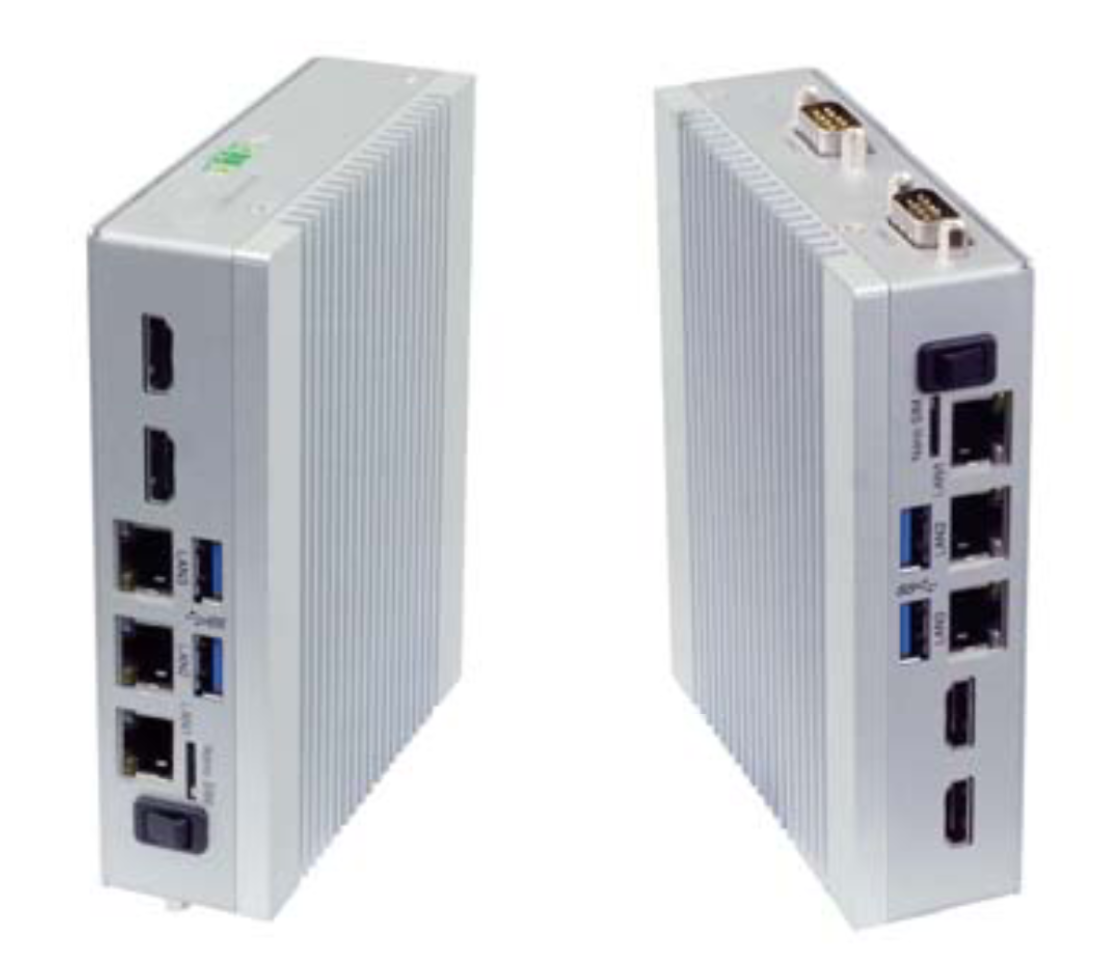

BEMB1 - Small cabinet PC
Last modified by Jan Brinkhaus on 2023/04/13 13:39
Software
All PCs are equipped from factory with
- A Debian variant which is hardened against sudden power losses and adapted to other needs of cabinet PCs (BOS, open source)
- BosUI (an open source GUI set for managing BOS PCs)
- DataGate
- DataSwitch
Hardware
| Article number | BEMB1 |
|---|---|
| CPU | Intel Atom X6413E 2.7 GHz |
| RAM | 8GB DDR4 SODIMM (max 32GB) |
| Network | 3x Gigabit Ethernet |
| USB | 2x USB 3.0 |
| Serial | 2xRS232/422/485 |
| Video | 2xHDMI |
| SSD | 64GB |
| Power connector | 9..24V |
| Operating temperature | 0°C to +60°C |
| Cooling | Fanless |
| Mounting | DIN Rail |

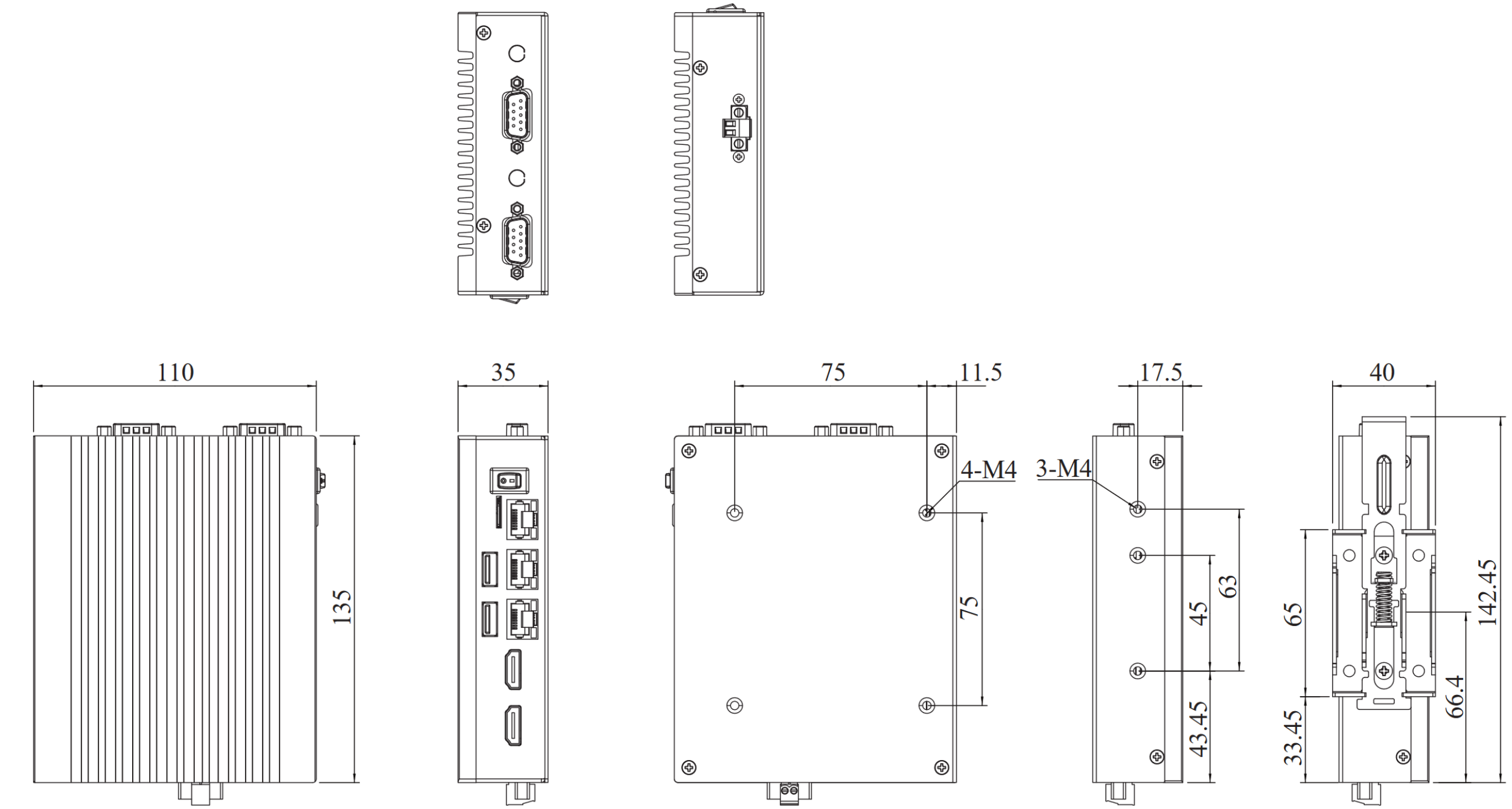

| Dimensions | 135W x 110D x 35H mm |
